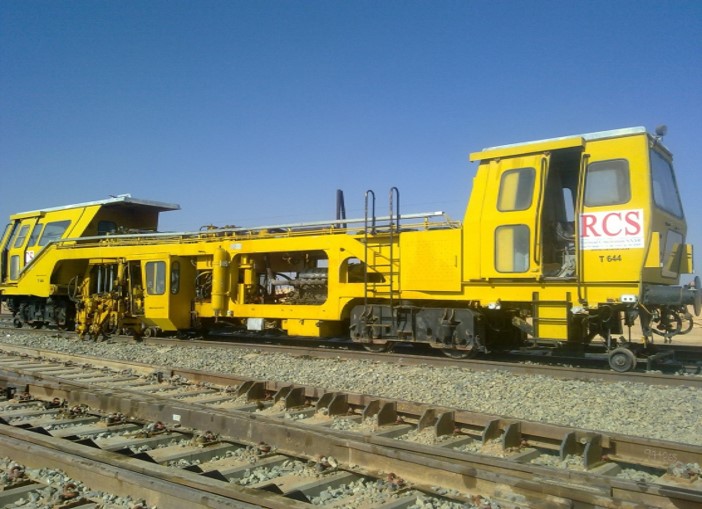

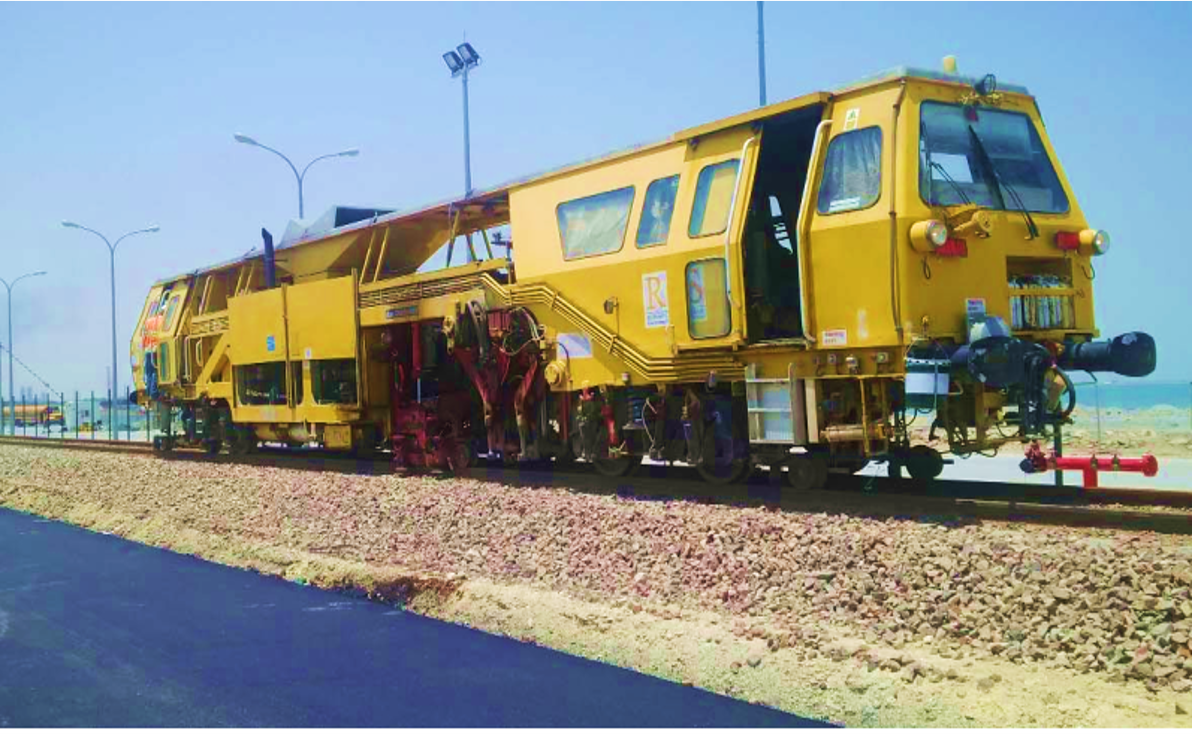

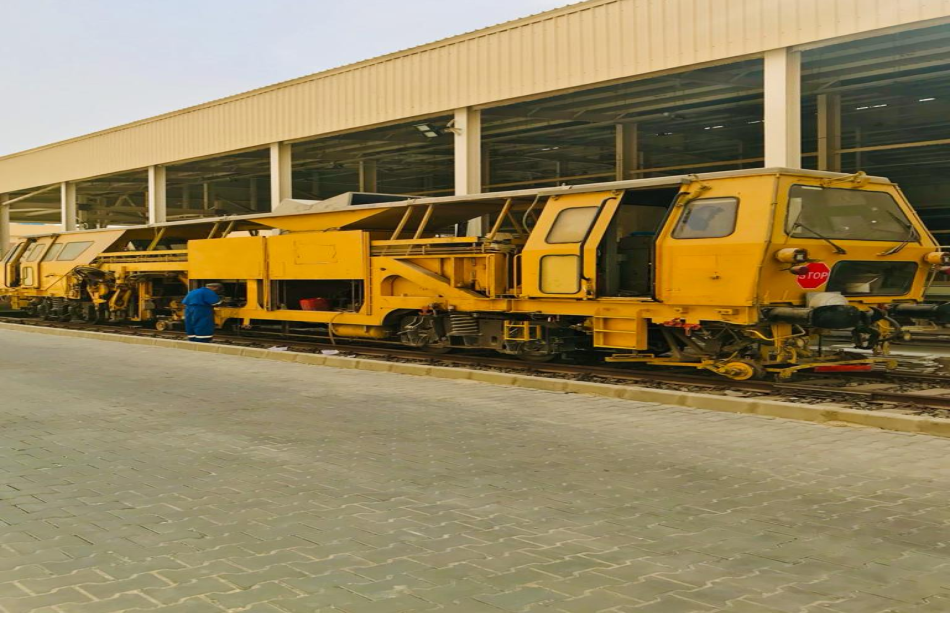

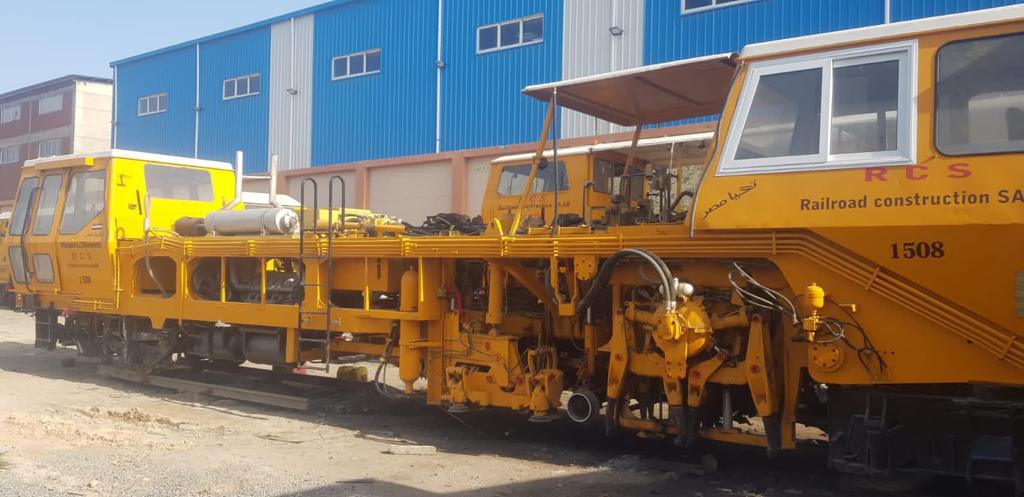

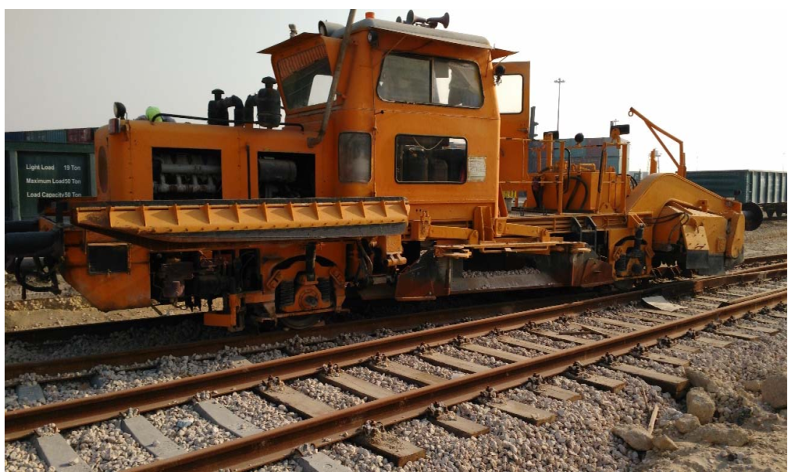

• The Plasser Line Tamper is a heavy duty, high speed, continuous action production track tamping machine. The 1435 mm gauge tamping machine is suitable for levelling, elevation, alignment and tamping of switches, crossings and tracks.
• The machine equipped with The Smart ALC automatic guiding computer is at the center of computer-based track geometry production for tamping machines and sets new standards with regard to user-friendliness and process reliability.


•

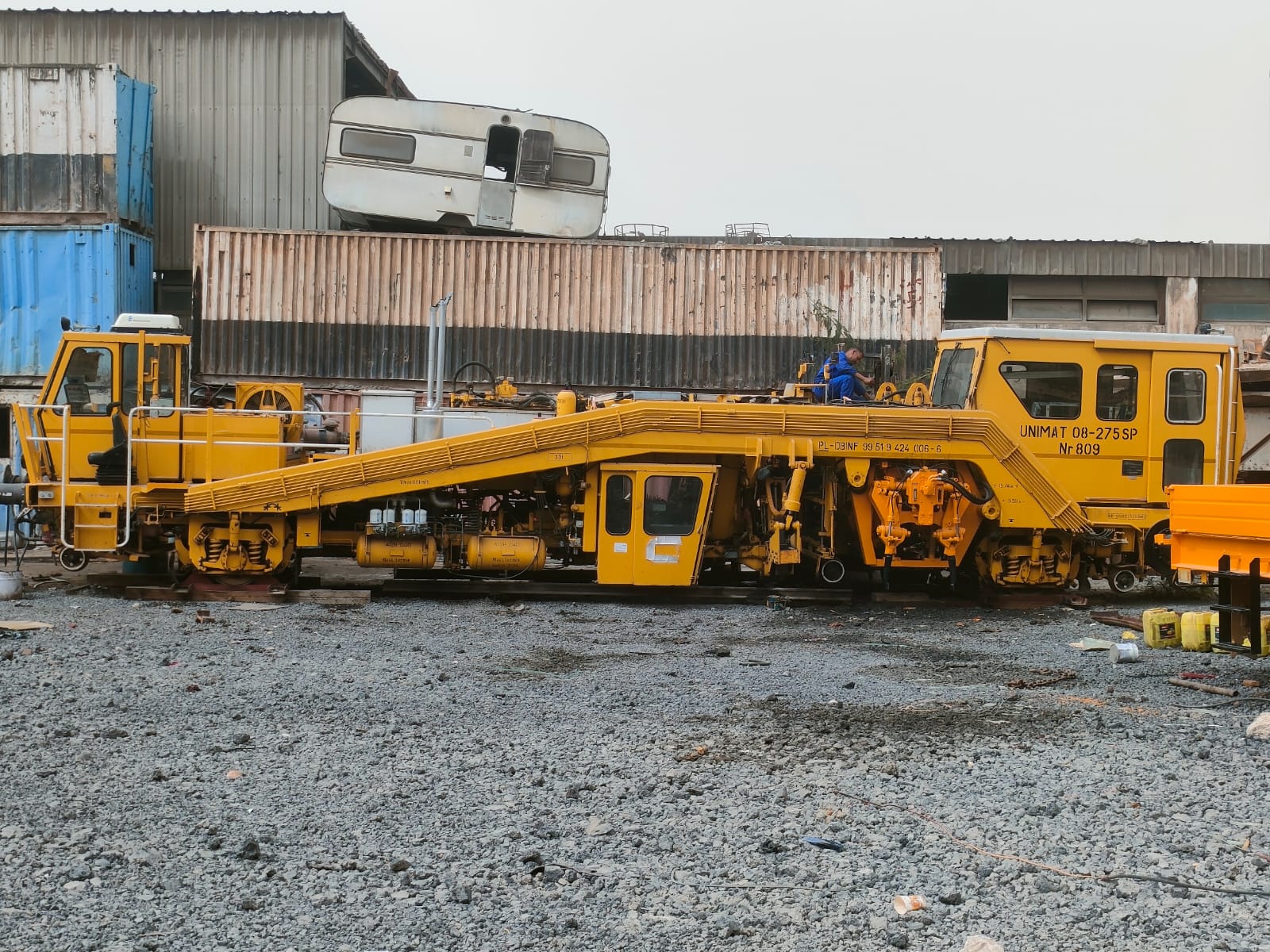

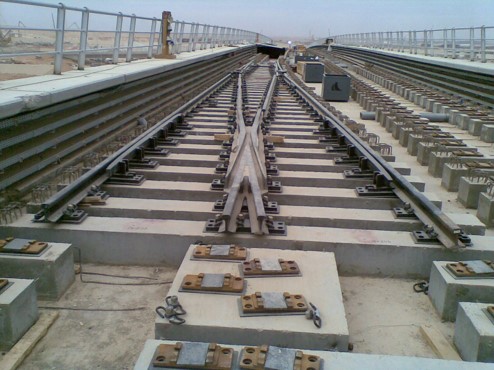

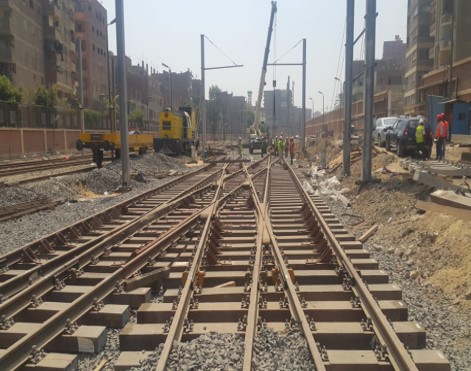

• Switch tamping machines: used to tamp switches, crossings and other complex track structures, have movable tamping heads with ability to isolate heads when required.
• The Machine capable of tamping complete turnout 1:14 with cast manganese crossing in less than 2 hours.

Ballast Regulator USP 5000 C is a heavy duty, ballast regulating and dressing machine. The USP 5000 C is specially designed and constructed for the stringent requirements of high density, high tonnage railways.

Ballast distributing and profiling machine with shoulder ploughs, centre plough and sweeper unit with a transverse conveyor belt for plain track

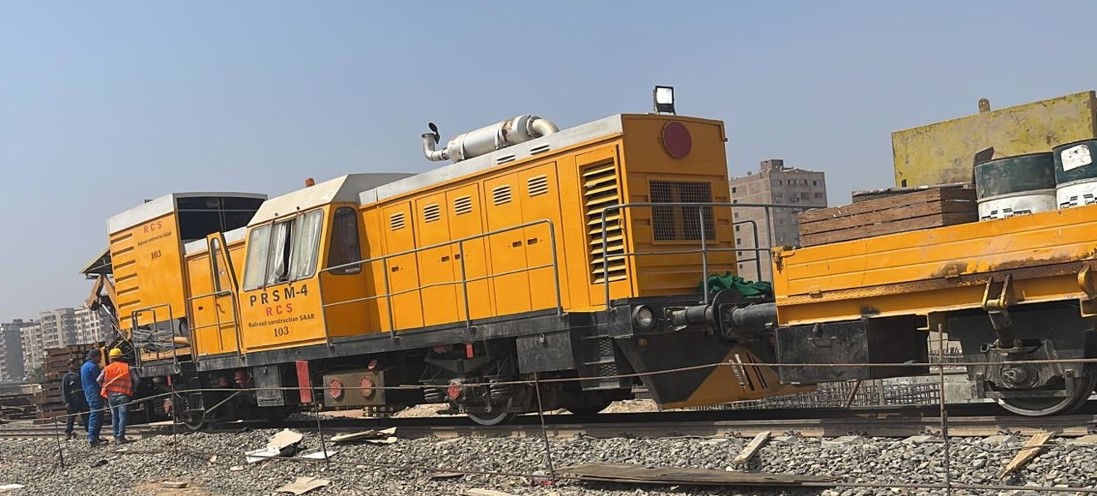

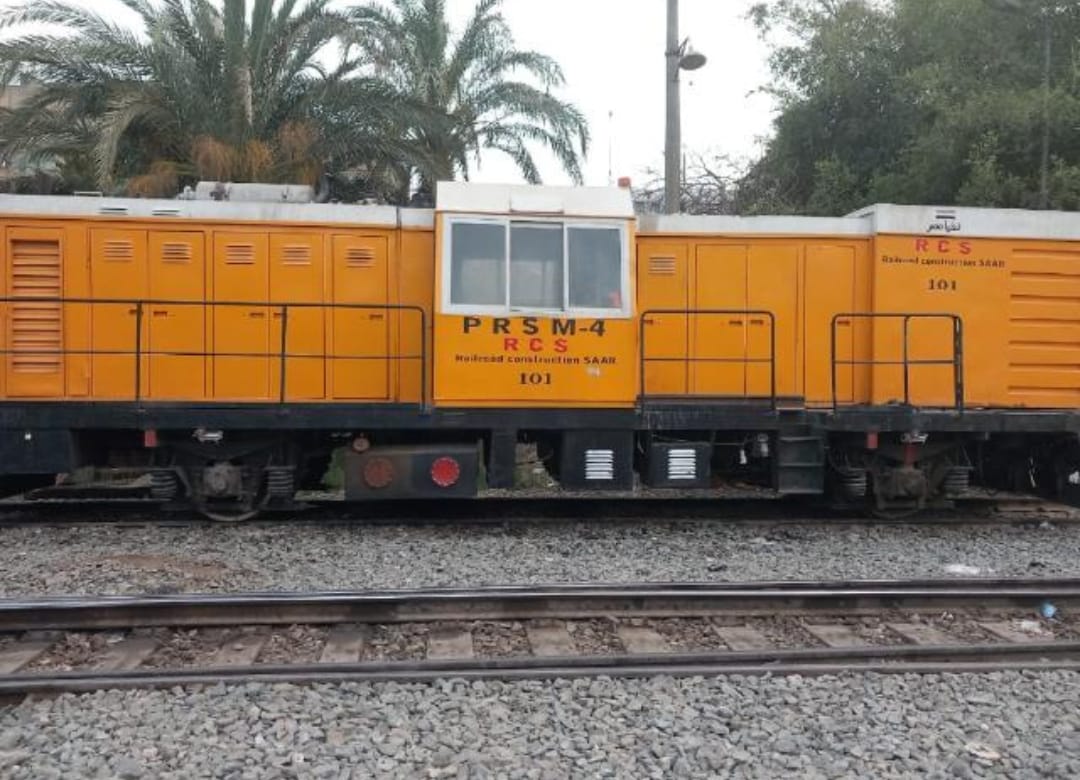

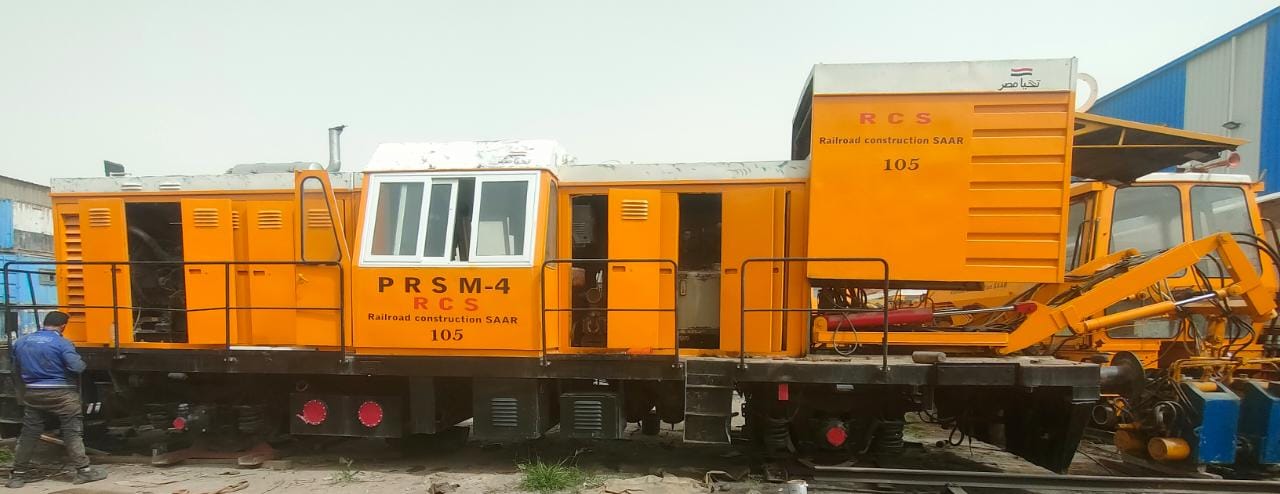

• Self-propelled rail-welding machine PRSM-4 is intended for electric resistance welding of rail butts. The machine can weld the rails laid in the track over which the machine moves as well as rails placed inside or outside of this track at a distance up to 2600 mm from track axis.
• The machine is equipped with a welding head k355-A1 and a new digitally computerized chart recorder screen which shows data output such as (Voltage, Current, Upset Force, Distance and Time elapsed) of the welding process.

• Self-propelled rail-welding machine PRSM-4 is intended for electric resistance welding of rail butts. The machine can weld the rails laid in the track over which the machine moves as well as rails placed inside or outside of this track at a distance up to 2600 mm from track axis.
• The machine is equipped with a welding head k355-A1 and a new digitally computerized chart recorder screen which shows data output such as (Voltage, Current, Upset Force, Distance and Time elapsed) of the welding process.

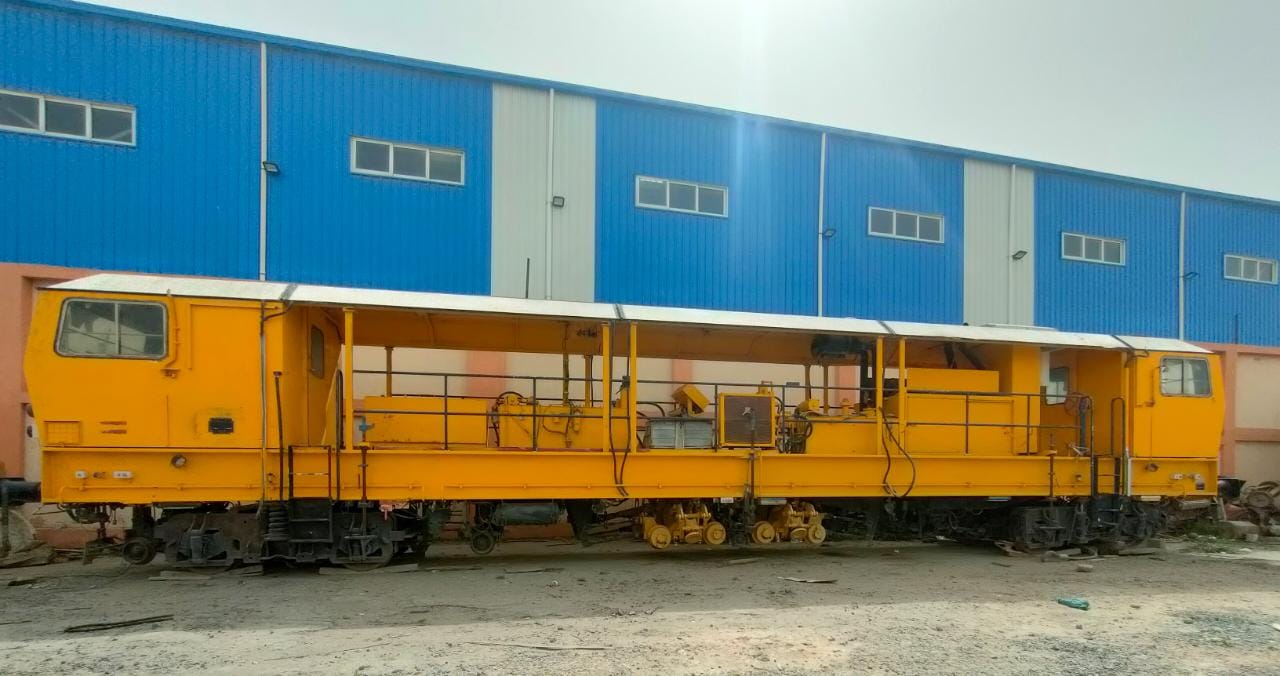

The Plasser Dynamic Track Stabilizer DGS 62-N is a heavy duty, dynamic stabilizer machine. Stabilizers are used after the tamping machines have finished tamping and straightening the track. The stabilizers are surface vibration devices that compact and stiffen the track-bearing ballast bed, thereby securing the track more firmly in the ballast and improving the resistance. After using a stabilizer, the ballast bed will settle less in the future because of passing trains. The DGS 62 N stabilizer has a measurement station for the lateral resistance of the ballast bed.

• The stabilization process is designed to reduce the voids in the crushed stone and thereby enlarge the contact surface between ballast and sleepers. This ensures better track stability, in the immediate term and over time.

• The DGS 62 N dynamic stabilizer has two devices that create horizontal and vertical vibrations in relation to the axis of the track, generating a crushed stone compaction effect without altering the profile and level of the track.

FEATURES

• Dynamic track stabilizer for plain track and turnouts with two stabilizing units with a vertical load of max. 356 KN.
• Homogenization of the ballast bed ensures quality and sustainability.
• Fine adjustment of the work frequency.
• High-precision measurement systems monitor levelling (and consequently the load acting on the rails) and the rail bed’s resistance to lateral displacement.
• Pre- and post-recording systems for parameters relating to the geometry of the entire alignment.
• The track is thereby quickly and definitively stabilized with high precision and, without altering its geometry, the lifecycle of the line is extended by 30%.
• The line can be immediately opened to rail traffic without any concern over failures: a categorical requirement for high-speed lines.

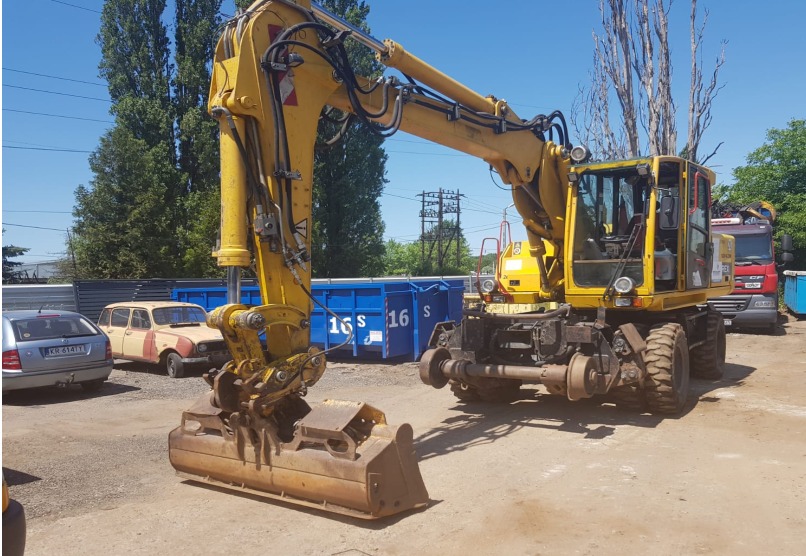

The excavator is adapted to work on railway tracks with a rail gauge of 1,435 mm

• The Plasser Line Tamper is a heavy duty, high speed, continuous action production track tamping machine. The 1435 mm gauge tamping machine is suitable for levelling, elevation, alignment and tamping of switches, crossings and tracks.
• The machine equipped with The Smart ALC automatic guiding computer is at the center of computer-based track geometry production for tamping machines and sets new standards with regard to user-friendliness and process reliability.

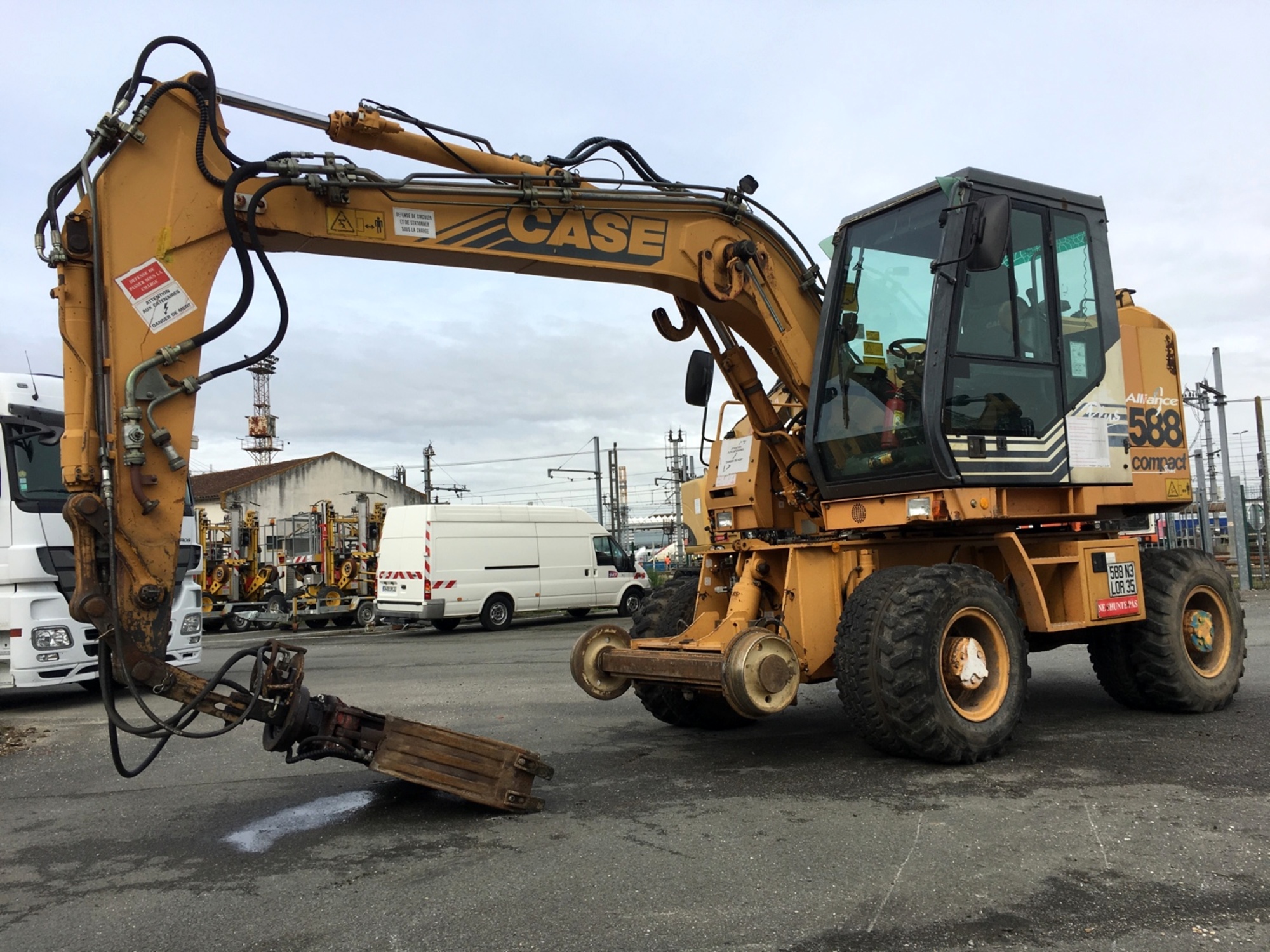

Railroad Wheeled Excavator Case Poclain
It is equipped with a monobloc arm, safety valves and also a reversing camera.
The machine is equipped with a powerful case engine and can provide 65 kw or 87 horse power for the crawler excavator.
